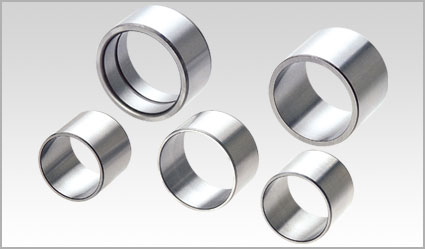

IR LR Series
Prodcut Name:IR LR Series
Product Description
|

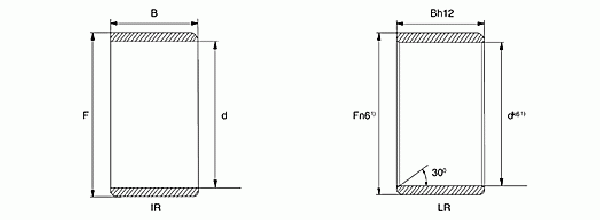

Shaft Diameter |
Bearing Designation |
Mass Approx |
Boundary Dimensions | ||
| d | F | B | |||
| mm | g | mm | |||
| 5 | lR5X8X12 | 2.79 | 5 | 8 | 12 |
| lR5X8X16 | 3.75 | 5 | 8 | 16 | |
| 6 | lR6X9X12 | 3.17 | 6 | 9 | 12 |
| lR6X9X16 | 4.3 | 6 | 9 | 16 | |
| lR6X10X10 | 3.7 | 6 | 10 | 10 | |
| • lR6X10X12 | 4.6 | 6 | 10 | 12 | |
| 7 | lR7X10X10.5 | 3.09 | 7 | 10 | 10.5 |
| lR7X10X12 | 3.61 | 7 | 10 | 12 | |
| lR7X10X15.5 | 7 | 10 | 15.5 | ||
| lR7X10X16 | 4.9 | 7 | 10 | 16 | |
| 7.8 | lR06X12X10.5C | 7.8 | 12.2 | 10.7 | |
| 8 | lR8X12X10 | 4.8 | 8 | 12 | 10 |
| lR/LR8X12X10.5 | 5 | 8 | 12 | 10.5 | |
| lR8X12X12 | 5.7 | 8 | 12 | 12 | |
| lR/LR8X12X12.5 | 5.9 | 8 | 12 | 12.5 | |
| lR8X12X15.5 | 8 | 12 | 15.5 | ||
| lR8X12X16 | 8 | 12 | 16 | ||
| lR8X12X5.5 | 8 | 12 | 5.5 | ||
| lR8X13X39 | 8 | 13 | 39 | ||
| 9 | lR9X12X7 | 9 | 12 | 7 | |
| lR9X12X12 | 4.5 | 9 | 12 | 12 | |
| lR9X12X12.5 | 9 | 12 | 12.5 | ||
| lR9X12X16 | 6.1 | 9 | 12 | 16 | |
| lR9X16X16 | 9 | 16 | 16 | ||
| 10 | IR10X13X12 | 10 | 13 | 12 | |
| lR/IR10X13X12.5 | 5.2 | 10 | 13 | 12.5 | |
| IR10X14X10.5 | 10 | 14 | 10.5 | ||
| • IR10X14X12 | 7.3 | 10 | 14 | 12 | |
| IR10X14X13 | 7.4 | 10 | 14 | 13 | |
| • IR10X14X14 | 8 | 10 | 14 | 14 | |
| IR10X14X16 | 9.2 | 10 | 14 | 16 | |
| IR10X14X16.5 | 10 | 14 | 16.5 | ||
| IR10X14X20 | 11.6 | 10 | 14 | 20 | |
| IR10X14X20.5 | 10 | 14 | 20.5 | ||
| IR10X15X13 | 10 | 15 | 13 | ||
| IR10X15X13.5 | 10 | 15 | 13.5 | ||
| IR10X15X20.5 | 10 | 15 | 20.5 | ||
| IR10X15X25.5 | 10 | 15 | 25.5 | ||
| 14 | 2R10X16X14 | 10 | 16 | 14 | |
| 10 | IR10X16X15 | 10 | 16 | 15 | |
| IR10X16X16 | 10 | 16 | 16 | ||
| IR10X17X15 | 10 | 17 | 15 | ||
| IR10X20X20.5 | 10 | 20 | 20.5 | ||
| IR10X20X30.5 | 10 | 20 | 30.5 | ||
| 12 | IR12X14X15.5 | 12 | 14 | 15.5 | |
| IR12X15X12 | 5.8 | 12 | 15 | 12 | |
| lR/IR12X15X12.5 | 6.1 | 12 | 15 | 12.5 | |
| IR12X15X16 | 8 | 12 | 15 | 16 | |
| lR/IR12X15X16.5 | 8.1 | 12 | 15 | 16.5 | |
| lR/IR12X15X22.5 | 11 | 12 | 15 | 22.5 | |
| IR12X15X16.5 | 12 | 15 | 16.5 | ||
| lR12X15X16 | 12 | 15 | 16 | ||
| IR12X15X19 | 12 | 15 | 19 | ||
| IR12X15X22.5 | 12 | 15 | 22.5 | ||
| • IR12X16X12 | 7.9 | 12 | 16 | 12 | |
| IR12X16X12 | 12 | 16 | 12 | ||
| IR12X16X12.5 | 12 | 16 | 12.5 | ||
| IR12X16X13 | 8.7 | 12 | 16 | 13 | |
| • IR12X16X14 | 9.5 | 12 | 16 | 14 | |
| IR12X16X14.5 | 12 | 16 | 14.5 | ||
| IR12X16X15 | 12 | 16 | 15 | ||
| IR12X16X16 | 11 | 12 | 16 | 16 | |
| • IR12X16X16 | 12 | 16 | 16 | ||
| IR12X16X16.5 | 12 | 16 | 16.5 | ||
| IR12X16X17 | 12 | 16 | 17 | ||
| IR12X16X20 | 13.5 | 12 | 16 | 20 | |
| IR12X16X20.5 | 12 | 16 | 20.5 | ||
| IR12X16X22 | 12 | 16 | 22 | ||
| IR12X16X22.5 | 12 | 16 | 22.5 | ||
| IR12X16X23.5 | 12 | 16 | 23.5 | ||
| IR12X17X15.5 | 12 | 17 | 15.5 | ||
| IR12X17X20 | 12 | 17 | 20 | ||
| IR12X17X20.5 | 12 | 17 | 20.5 | ||
| IR12X17X22.5 | 12 | 17 | 22.5 | ||
| IR12X17X25.5 | 12 | 17 | 25.5 | ||
| 13 | IR13X16X20.5 | 13 | 16 | 20.5 | |
| 14 | IR14X16X16 | 14 | 16 | 16 | |
| IR14X17X17 | 10 | 14 | 17 | 17 | |
| IRl4X25X30 | 14 | 25 | 30 | ||
| 15 | IRl5X18X12.5 | 7.2 | 15 | 18 | 12.5 |
| IRl5X18X15.5 | 15 | 18 | 15.5 | ||
| IRl5X18X16 | 9.6 | 15 | 18 | 16 | |
| IRl5X18X16.5 | 9.9 | 15 | 18 | 16.5 | |
| IRl5X18X17.5 | 15 | 18 | 17.5 | ||
| IRl5X18X20.5 | 15 | 18 | 20.5 | ||
| IRl5X199X10 | 15 | 19 | 10 | ||
| IRl5X19X13.5 | 15 | 19 | 13.5 | ||
| IRl5X19X16 | 12.8 | 15 | 19 | 16 | |
| IRl5X19X16.5 | 15 | 19 | 16.5 | ||
| IRl5X19X20 | 16.4 | 15 | 19 | 20 | |
| IRl5X19X20.5 | 15 | 19 | 20.5 | ||
| • IRl5X20X12 | 12.1 | 15 | 20 | 12 | |
| IRl5X20X13 | 13.5 | 15 | 20 | 13 | |
| • IRl5X20X14 | 14.7 | 15 | 20 | 14 | |
| IRl5X20x14 | 15 | 20 | 14 | ||
| IRl5X20X15 | 15 | 20 | 15 | ||
| IRl5X20X15.5 | 15 | 20 | 15.5 | ||
| IRl5X20X16 | 15 | 20 | 16 | ||
| IRl5X20X18 | 15 | 20 | 18 | ||
| IRl5X20X20 | 15 | 20 | 20 | ||
| IR15X20X20.5 | 15 | 20 | 20.5 | ||
| IRl5X20X23 | 24.4 | 15 | 20 | 23 | |
| IR15X20X25.5 | 15 | 20 | 25.5 | ||
| IR15X20X30.5 | 15 | 20 | 30.5 | ||
| 16 | IRl6X20X14 | 16 | 20 | 14 | |
| IRl6X20X16 | 16 | 20 | 16 | ||
| IRl6X20X20 | 16 | 20 | 20 | ||
| IRl6X20X32 | 16 | 20 | 32 | ||
| IRl6X24X20 | 16 | 24 | 20 | ||
| 17 | IRl7X20X16 | 10.7 | 17 | 20 | 16 |
| IRl7X20X16.5 | 11.1 | 17 | 20 | 16.5 | |
| IRl7X20X20 | 13.5 | 17 | 20 | 20 | |
| IR17X20X20.5 | 13.8 | 17 | 20 | 20.5 | |
| IRl7X20X30 | 17 | 20 | 30 | ||
| IR17X20X30.5 | 20.6 | 17 | 20 | 30.5 | |
| IRl7X21X16 | 14.3 | 17 | 21 | 16 | |
| IRl7X21X16.5 | 17 | 21 | 16.5 | ||
| IRl7X21X20 | 18 | 17 | 21 | 20 | |
| IRl7X21X20.5 | 17 | 21 | 20.5 | ||
| IRl7X22X13 | 14.9 | 17 | 22 | 13 | |
| • IRl7X22X14 | 16.4 | 17 | 22 | 14 | |
| IRl7X22X15.5 | 17 | 22 | 15.5 | ||
| IRl7X22X16 | 18.7 | 17 | 22 | 16 | |
| IR17X22X20.5 | 17 | 22 | 20.5 | ||
| IRl7X22X23 | 27.1 | 17 | 22 | 23 | |
| IRl7X22X26 | 17 | 22 | 26 | ||
| IRl7X22X32 | 17 | 22 | 32 | ||
| IRl7X22X20 | 33.6 | 17 | 24 | 20 | |
| 18 | IRl8X22X17.8 | 18 | 22 | 17.8 | |
| IRl8X22X19 | 18 | 22 | 19 | ||
| 20 | IR20X24X16 | 16.5 | 20 | 24 | 16 |
| IR20X24X16.5 | 20 | 24 | 16.5 | ||
| IR20X24X28.5 | 20 | 24 | 28.5 | ||
| IR20X25X10.5 | 20 | 25 | 10.5 | ||
| IR20X25X12.5 | 20 | 20 | 25 | 12.5 | |
| IR20X25X15.5 | 20 | 25 | 15.5 | ||
| IR20X25X17 | 22.4 | 20 | 25 | 17 | |
| IR20X25X18 | 24.3 | 20 | 25 | 18 | |
| IR20X25X20 | 27.5 | 20 | 25 | 20 | |
| IR20X25X20.5 | 28.2 | 20 | 25 | 20.5 | |
| IR20X25X23 | 20 | 25 | 23 | ||
| IR20X25X25 | 20 | 25 | 25 | ||
| IR20X25X25.5 | 20 | 25 | 25.5 | ||
| IR20X25X26 | 20 | 25 | 26 | ||
| IR20X25X26.5 | 36.1 | 20 | 25 | 26.5 | |
| IR20X25X30 | 40.9 | 20 | 25 | 30 | |
| IR20X25X30.5 | 20 | 25 | 30.5 | ||
| IR20X25X32 | 20 | 25 | 32 | ||
| IR20X25X32A | 20 | 25 | 32 | ||
| IR20X25X320H | 20 | 25 | 32 | ||
| IR20X25X38.5 | 52.5 | 20 | 25 | 38.5 | |
| IR20X26X16 | 20 | 26 | 16 | ||
| IR20X26X20 | 20 | 26 | 20 | ||
| IR20X28X20 | 45.2 | 20 | 28 | 20 | |
| IR20X30X30 | 20 | 30 | 30 | ||
| 22 | IR22X26X20 | 23.2 | 22 | 26 | 20 |
| IR22X26X16 | 17.5 | 22 | 26 | 16 | |
| IR22X26X20.5 | 22 | 26.5 | 20.5 | ||
| IR22X28X17 | 29.8 | 22 | 28 | 17 | |
| IR22X28X20 | 35 | 22 | 28 | 20 | |
| IR22X28X20.5 | 36 | 22 | 28 | 20.5 | |
| IR22X28X30 | 22 | 28 | 30 | ||
| IR22X28X30.5 | 22 | 28 | 30.5 | ||
| IR22X28X20.5 | 22 | 28 | 20.5 | ||
| IR22X28X30 | 22 | 28 | 30 | ||
| IR22X31.5X19.8 | 22 | 31.5 | 19.8 | ||
| IR22X32X20 | 22 | 32 | 20 | ||
| 25 | IR25X29X20 | 25.5 | 25 | 29 | 20 |
| IR25X29X20.5 | 25 | 29 | 20.5 | ||
| IR25X29X30 | 39.3 | 25 | 29 | 30 | |
| IR25X29X30.5 | 25 | 29 | 30.5 | ||
| IR25X29X40 | 25 | 29 | 40 | ||
| IR25X30X12.5 | 25 | 30 | 12.5 | ||
| IR25X30X15.5 | 20 | 25 | 30 | 15.5 | |
| • IR25X30X16 | 26 | 25 | 30 | 16 | |
| IR25X30X16 | 25 | 30 | 16 | ||
| IR25X30X16.5 | 26.7 | 25 | 30 | 16.5 | |
| IR25X30X16 | 25 | 30 | 16 | ||
| • IR25X30X17 | 27.5 | 25 | 30 | 17 | |
| IR25X30X18 | 29.8 | 25 | 30 | 18 | |
| IR25X30X20 | 32.6 | 25 | 30 | 20 | |
| IR25X30X20.5 | 33.5 | 25 | 30 | 20.5 | |
| IR25X30X22 | 25 | 30 | 22 | ||
| IR25X30X25.5 | 25 | 30 | 25.5 | ||
| IR25X30X26 | 25 | 30 | 26 | ||
| IR25X30X26.5 | 43.3 | 25 | 30 | 26.5 | |
| IR25X30X30 | 50.1 | 25 | 30 | 30 | |
| IR25X30X30.5 | 25 | 30 | 30.5 | ||
| IR25X30X32 | 53 | 25 | 30 | 32 | |
| IR25X30X32.5 | 25 | 30 | 32.5 | ||
| IR25X30X38 | 25 | 30 | 38 | ||
| IR25X30X38.5 | 63.8 | 25 | 30 | 38.5 | |
| IR25X32X22 | 51.7 | 25 | 30 | 22 | |
| 28 | IR28X32X17 | 24.5 | 28 | 32 | 17 |
| IR28X32X20 | 28.4 | 28 | 32 | 20 | |
| IR28X32X23 | 28 | 32 | 23 | ||
| IR28X32X30 | 43.8 | 28 | 32 | 30 | |
| IR28X32X30.5 | 28 | 32 | 30.5 | ||
| IR28X32X47 | 28 | 32 | 47 | ||
| 29 | IR29X32X13 | 14.8 | 29 | 32 | 13 |
| IR29X35X26 | 29 | 35 | 26 |
|
Shaft Diameter |
Bearing Designation |
Mass Approx |
Boundary Dimensions | ||
| d | F | B | |||
| mm | g | mm | |||
| 30 | IR30X35X12.5 | 23.3 | 30 | 35 | 12.5 |
| IR30X35X13 | 25 | 30 | 35 | 13 | |
| IR30X35X15.5 | 30 | 35 | 15.5 | ||
| IR30X35X16 | 30.8 | 30 | 35 | 16 | |
| IR30X35X17 | 32.3 | 30 | 35 | 17 | |
| • IR30X35X18 | 35.3 | 30 | 35 | 18 | |
| IR30X35X20 | 40 | 30 | 35 | 20 | |
| IR30X35X20.5 | 40.7 | 30 | 35 | 20.5 | |
| IR30X35X25.5 | 30 | 35 | 25.5 | ||
| IR30X35X26 | 50.3 | 30 | 35 | 26 | |
| IR30X35X30 | 58.9 | 30 | 35 | 30 | |
| IR30X35X30.5 | 30 | 35 | 30.5 | ||
| IR30X35X32 | 30 | 35 | 32 | ||
| IR30X37X18 | 50 | 30 | 37 | 18 | |
| IR30X37X22 | 60.8 | 30 | 37 | 22 | |
| IR30X37X22A | 30 | 37 | 22.1 | ||
| • IR30X38X20 | 64.8 | 30 | 38 | 20 | |
| IR30X38X20A | 30 | 38 | 20 | ||
| IR30X38X20ASl | 30 | 38 | 20 | ||
| IR30X40X17 | 30 | 40 | 17 | ||
| 32 | IR32X34X20.5 | 32 | 34 | 20.5 | |
| IR32X37X20 | 42 | 32 | 37 | 20 | |
| IR32X37X20.5 | 32 | 37 | 20.5 | ||
| IR32X37X30 | 62.7 | 32 | 37 | 30 | |
| IR32X38X20.5 | 32 | 38 | 20.5 | ||
| IR32X38X30.5 | 32 | 38 | 30.5 | ||
| IR32X40X20 | 68 | 32 | 40 | 20 | |
| IR32X40X36 | 124 | 32 | 40 | 36 | |
| IR32X40X36A1 | 32 | 40 | 36 | ||
| 33 | IR33X37X13 | 21.9 | 33 | 37 | 13 |
| 34 | IR34X42X20 | 34 | 42 | 20 | |
| 35 | IR35X40X12.5 | 27.2 | 35 | 40 | 12.5 |
| IR35X40X15 | 35 | 40 | 15 | ||
| IR35X40X15.5 | 35 | 40 | 15.5 | ||
| IR35X40X16.5 | 37.4 | 35 | 40 | 16.5 | |
| IR35X40X17 | 38.3 | 35 | 40 | 17 | |
| IR35X40X20 | 44.4 | 35 | 40 | 20 | |
| IR35X40X20.5 | 46.1 | 35 | 40 | 20.5 | |
| IR35X40X21 | 35 | 40 | 21 | ||
| IR35X40X25 | 35 | 40 | 25 | ||
| IR35X40X25.5 | 35 | 40 | 25.5 | ||
| IR35X40X30 | 67.9 | 35 | 40 | 30 | |
| IR35X40X30.5 | 35 | 40 | 30.5 | ||
| IR35X40X34 | 35 | 40 | 34 | ||
| IR35X40X40 | 35 | 40 | 40 | ||
| • IR35X42X20 | 63.9 | 35 | 42 | 20 | |
| IR35X42X20.5 | 66 | 35 | 42 | 20.5 | |
| • IR35X42X21 | 67.7 | 35 | 42 | 21 | |
| • IR35X42X23 | 74 | 35 | 42 | 23 | |
| IR35X42X36 | 117 | 35 | 42 | 36 | |
| IR35X42X37 | 35 | 42 | 37 | ||
| IR35X43X22 | 82 | 35 | 43 | 22 | |
| IR35X65X28 | 35 | 65 | 28 | ||
| 36 | IR36.2X50X25.5 | 36 | 50 | 25.5 | |
| 38 | IR38X43X20 | 48.1 | 38 | 43 | 20 |
| IR38X43X30 | 73.6 | 38 | 43 | 30 | |
| IR38X45X46 | 38 | 45 | 46 | ||
| 40 | IR40X45X12 | 40 | 45 | 12 | |
| IR40X45X16 | 40 | 45 | 16 | ||
| IR40X45X16.5 | 41.4 | 40 | 45 | 16.5 | |
| IR40X45X17 | 42.5 | 40 | 45 | 17 | |
| IR40X45X20 | 50.5 | 40 | 45 | 20 | |
| IR40X45X20.5 | 52.5 | 40 | 45 | 20.5 | |
| IR40X45X22.5 | 40 | 45 | 22.5 | ||
| IR40X45X25 | 40 | 45 | 25 | ||
| IR40X45X25.5 | 40 | 45 | 25.5 | ||
| IR40X45X30 | 77.1 | 40 | 45 | 30 | |
| IR40X45X30.5 | 40 | 45 | 30.5 | ||
| IR40X45X34 | 40 | 45 | 34 | ||
| IR40X45X40 | 40 | 45 | 40 | ||
| IR40X45X40.5 | 40 | 45 | 40.5 | ||
| IR40X45X40ASI | 40 | 45 | 40 | ||
| IR40X48X22 | 40 | 48 | 22 | ||
| • IR40X48X23 | 40 | 48 | 23 | ||
| IR40X48X30 | 40 | 48 | 30 | ||
| IR40X48X40 | 40 | 48 | 40 | ||
| IR40X49.5X40 | 40 | 49.5 | 40 | ||
| IR40X50X20.5 | 40 | 50 | 20.5 | ||
| • IR40X50X20 | 40 | 50 | 20 | ||
| IR40X50X22 | 40 | 50 | 22 | ||
| IR40X50X35 | 40 | 50 | 35 | ||
| IR40X55X17 | 40 | 55 | 17 | ||
| 42 | IR42X47X20 | 42 | 47 | 20 | |
| IR42X47X30 | 42 | 47 | 30 | ||
| 44 | IR44X52X32 | 44 | 52 | 32 | |
| 45 | IR45X50X14 | 45 | 50 | 14 | |
| IR45X50X15.5 | 45 | 50 | 15.5 | ||
| IR45X50X20 | 45 | 50 | 20 | ||
| IR45X50X20.5 | 45 | 50 | 20.5 | ||
| IR45X50X25 | 45 | 50 | 25 | ||
| IR45X50X25.5 | 45 | 50 | 25.5 | ||
| IR45X50X26 | 45 | 50 | 26 | ||
| IR45X50X30.5 | 45 | 50 | 30.5 | ||
| IR45X50X35 | 45 | 50 | 35 | ||
| IR45X50X40 | 45 | 50 | 40 | ||
| IR45X50X40.5 | 45 | 50 | 40.5 | ||
| IR45X50X45.5 | 45 | 50 | 45.5 | ||
| IR45X52X22 | 45 | 52 | 22 | ||
| • IR45X52X23 | 45 | 52 | 23 | ||
| IR45X52X40 | 45 | 52 | 40 | ||
| • IR45X55X20 | 45 | 55 | 20 | ||
| IR45X55X22 | 45 | 55 | 22 | ||
| IR45X55X40 | 45 | 55 | 40 | ||
| 45.2 | IR45.2X58X36 | 42.5 | 58 | 36 | |
| 47 | IR47X60X35 | 47 | 60 | 35 | |
| 48 | IR48X55X20 | 48 | 55 | 20 | |
| 50 | IR50X55X17 | 50 | 55 | 17 | |
| • IR50X55X20 | 50 | 55 | 20 | ||
| IR50X55X20.5 | 50 | 55 | 20.5 | ||
| IR50X55X25 | 50 | 55 | 25 | ||
| IR50X55X25.5 | 50 | 55 | 25.5 | ||
| IR50X55X26 | 50 | 55 | 26 | ||
| IR50X55X35 | 112 | 50 | 55 | 35 | |
| IR50X55X40 | 50 | 55 | 40 | ||
| IR50X55X42 | 50 | 55 | 42 | ||
| IR50X55X45.5 | 50 | 55 | 45.5 | ||
| IR50X55X20 | 50 | 55.3 | 20.3 | ||
| IR50X56X21.5 | 50 | 56 | 21.5 | ||
| IR50X58X16 | 50 | 58 | 16 | ||
| IR50X58X22 | 115 | 50 | 58 | 22 | |
| • IR50X58X23 | 119 | 50 | 58 | 23 | |
| IR50X58X40 | 209 | 50 | 58 | 40 | |
| • IR50X60X20 | 129 | 50 | 60 | 20 | |
| IR50X60X25 | 163 | 50 | 60 | 25 | |
| IR50X60X25.5 | 50 | 60 | 25.5 | ||
| IR50X60X28 | 183 | 50 | 60 | 28 | |
| IR50X60X50 | 50 | 60 | 50 | ||
| IR50X60X50.5 | 50 | 60 | 50.5 | ||
| 51 | IR51X63X52 | 51 | 63 | 52 | |
| 54 | IR54X60X25 | 54 | 60 | 25 | |
| 55 | IR55X60X12 | 55 | 60 | 12 | |
| IR55X60X25 | 86 | 55 | 60 | 25 | |
| IR55X60X32.5EGS | 55 | 60 | 32.5 | ||
| IR55X60X35 | 121 | 55 | 60 | 35 | |
| IR55X60X36EGS | 55 | 60 | 36 | ||
| IR55X63X25 | 141 | 55 | 63 | 25 | |
| IR55X63X45 | 256 | 55 | 63 | 45 | |
| IR55X63X65.25 | 55 | 63 | 65.25 | ||
| IR55X65X20 | 55 | 65 | 20 | ||
| IR55X65X25 | 55 | 65 | 25 | ||
| IR55X65X28 | 198 | 55 | 65 | 28 | |
| IR55X65X30 | 55 | 65 | 30 | ||
| IR55X65X60 | 55 | 65 | 60 | ||
| IR55X65X90 | 55 | 65 | 90 | ||
| IR55X65X110 | 55 | 65 | 110 | ||
| 60 | IR60X68X25 | 152 | 60 | 68 | 25 |
| IR60X68X35 | 213 | 60 | 68 | 35 | |
| IR60X68X45 | 275 | 60 | 68 | 45 | |
| IR60X70X30 | 60 | 70 | 30 | ||
| IR60X70X25 | 195 | 60 | 70 | 25 | |
| IR60X70X28 | 216 | 60 | 70 | 28 | |
| IR60X70X30 | 60 | 70 | 30 | ||
| IR60X70X35 | 60 | 70 | 35 | ||
| IR60X70X60 | 60 | 70 | 60 | ||
| IR60X73X35 | 60 | 73 | 35 | ||
| 65 | IR65X72X25 | 142 | 65 | 72 | 25 |
| IR65X72X45 | 259 | 65 | 72 | 45 | |
| IR65X73X25 | 164 | 65 | 73 | 25 | |
| IR65X75X28 | 230 | 65 | 75 | 28 | |
| IR65X75X30 | 65 | 75 | 30 | ||
| 70 | IR70X80X25 | 224 | 70 | 80 | 25 |
| IR70X80X30 | 267 | 70 | 80 | 30 | |
| IR70X80X54 | 487 | 70 | 80 | 54 | |
| IR70X80X56 | 506 | 70 | 80 | 56 | |
| IR70X80X60 | 70 | 80 | 60 | ||
| IR70X80X80 | 70 | 80 | 80 | ||
| 73 | IR73X80X35 | 73 | 80 | 35 | |
| 75 | IR75X85X35 | 238 | 75 | 85 | 25 |
| IR75X85X25 | 287 | 75 | 85 | 30 | |
| IR75X85X54 | 520 | 75 | 85 | 54 | |
| 78 | IR78X90X80 | 78 | 90 | 80 | |
| 80 | IR80X90X25 | 254 | 80 | 90 | 25 |
| IR80X90X30 | 304 | 80 | 90 | 30 | |
| IR80X90X35 | 355 | 80 | 90 | 35 | |
| IR80X90X54 | 550 | 80 | 90 | 54 | |
| IR80X92X50 | 80 | 92 | 50 | ||
| 85 | IR85X95X26 | 280 | 85 | 95 | 26 |
| IR85X95X30 | 85 | 95 | 30 | ||
| IR85X100X35 | 580 | 85 | 100 | 35 | |
| IR85X95X36 | 85 | 95 | 36 | ||
| IR85X100X63 | 100 | 85 | 100 | 63 | |
| 88 | IR88X100X30 | 88 | 100 | 30 | |
| 90 | IR90X100X26 | 294 | 90 | 100 | 26 |
| IR90X100X30 | 340 | 90 | 100 | 30 | |
| IR90X105X36 | 610 | 90 | 105 | 35 | |
| IR90X105X63 | 1110 | 90 | 105 | 63 | |
| IR90X110X35 | 90 | 110 | 56 | ||
| 95 | IR95X105X26 | 313 | 95 | 105 | 26 |
| 130 | IRl30X150X50 | 1690 | 130 | 150 | 50 |
| 130 | IRl30X150X60 | 130 | 150 | 60 | |
| 140 | IRl40X150X40 | 140 | 150 | 40 | |
| IRl40X160X50 | 1800 | 140 | 160 | 50 | |
| IRl40X160X50A | 140 | 160 | 50 | ||
| 150 | IRl50X165X40 | 1120 | 150 | 165 | 40 |
| IRl50X165X50 | 150 | 165 | 50 | ||
| IRl50X170X60 | 150 | 170 | 60 | ||
| 160 | IRl60X175X70 | 1200 | 160 | 175 | 70 |
| 170 | IRl70X180X45 | 170 | 180 | 45 | |
| IRl70X185X45 | 170 | 185 | 45 | ||
| 220 | IR220X240X50 | 220 | 240 | 50 |
