LRT LRB Series
Prodcut Name:LRT LRB Series
Product Description
|
Shaft Diameter |
Bearing Designation |
Mass Approx |

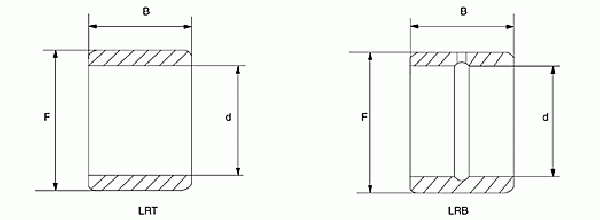

Boundary Dimensions | ||
| d | F | B | |||
| mm | g | mm | |||
| 8 | LRT81212.5 | 8 | 12 | 12.5 | |
| LRT81210 | 8 | 12 | 10 | ||
| LRT8128 | 8 | 12 | 8 | ||
| 9 | LRT91212 | 9 | 12 | 12 | |
| 10 | LRT101413 | 10 | 14 | 13 | |
| 12 | LRT121616 | 12 | 16 | 16 | |
| 15 | LRT151916 | 15 | 19 | 16 | |
| 17 | LRT172016 | 17 | 20 | 16 | |
| LRT172116 | 17 | 21 | 16 | ||
| 20 | LRT202416 | 20 | 24 | 16 | |
| LRT202517 | 20 | 25 | 17 | ||
| LRT202525 | 20 | 25 | 25 | ||
| LRT202526.5 | 20 | 25 | 26.5 | ||
| 25 | LRT252920 | 25 | 29 | 20 | |
| LRT252930 | 25 | 29 | 30 | ||
| 30 | LRT303517 | 30 | 35 | 17 | |
| LRT303520 | 30 | 35 | 20 | ||
| 32 | LRT323720 | 32 | 37 | 20 | |
| LRT324020 | 32 | 40 | 20 | ||
| LRT324036 | 32 | 40 | 36 | ||
| 35 | LRT354020 | 35 | 40 | 20 | |
| LRT354030 | 35 | 40 | 30 | ||
| 40 | LRT404520 | 40 | 45 | 20 | |
| LRT404530 | 40 | 45 | 30 | ||
| LRT404820 | 40 | 48 | 20 | ||
| LRT404840 | 40 | 48 | 40 | ||
| 50 | LRT505525 | 50 | 55 | 25 | |
| LRT506025.5 | 50 | 60 | 25.5 | ||
| 54 | LRT546025 | 54 | 60 | 25 | |
| 55 | LRT556025 | 55 | 60 | 25 | |
| LRT556525 | 55 | 65 | 25 | ||
| 60 | LRT606825 | 60 | 68 | 25 | |
| LRT606845 | 60 | 68 | 45 | ||
| 65 | LRT657335 | 65 | 73 | 35 | |
| LRT657445 | 65 | 74 | 45 | ||
| 75 | LRT758525 | 75 | 85 | 25 | |
| 80 | LRT809054 | 80 | 90 | 54 |
|
Shaft Diameter |
Bearing Designation |
Mass Approx |
Boundary Dimensions | ||||
| d | F | B | |||||
| mm | g | in | mm | in | mm | mm | |
|
9.525 (3.8) |
LRB61012 | 18.5 | 3/8 | 9.525 | 3/8 | 15.875 | 19.300 |
|
12.700 (1/2) |
LRB81212 | 23.5 | 1/2 | 12.700 | 3/4 | 19.050 | 19.300 |
| LRB81216 | 31 | 1/2 | 12.700 | 3/4 | 19.050 | 25.650 | |
|
15.875 (5/8) |
LRBl01412 | 28 | 5/8 | 15.875 | 7/8 | 22.225 | 19.300 |
| LRBl01416 | 37.5 | 5/8 | 15.875 | 7/8 | 22.225 | 25.650 | |
|
19.050 (3/4) |
LRBl21612 | 33 | 3/4 | 19.050 | 1 | 25.400 | 19.300 |
| LRBl21616 | 44 | 3/4 | 19.050 | 1 | 25.400 | 25.650 | |
|
22.225 (7/8) |
LRBl41816 | 50 | 7/8 | 22.225 | 11/8 | 28.575 | 25.650 |
| LRBl41820 | 62 | 7/8 | 22.225 | 11/8 | 28.575 | 32.000 | |
|
25.400 (1) |
LRBl62016 | 56 | 1 | 25.4 | 11/4 | 31.750 | 25.650 |
| LRBl62020 | 72 | 1 | 25.4 | 11/4 | 31.750 | 32.000 | |
|
28.575 (11/8) |
LRBl82216 | 63 | 11/8 | 28.575 | 13/8 | 34.925 | 25.650 |
| LRBl82220 | 77 | 11/8 | 28.575 | 13/8 | 34.925 | 32.000 | |
|
31.750 (11/4) |
LRB202406 | 71 | 11/4 | 31.750 | 11/2 | 38.100 | 25.650 |
| LRB202420 | 86 | 11/4 | 31.750 | 11/2 | 38.100 | 32.000 | |
|
34.925 (13/8) |
LRB222616 | 77 | 13/8 | 34.925 | 11/2 | 41.275 | 25.650 |
| LRB222620 | 96 | 13/8 | 34.925 | 15/8 | 41.275 | 32.000 | |
|
38.100 (11/2) |
LRB242816 | 80 | 11/2 | 38.100 | 15/8 | 44.450 | 25.650 |
| LRB242820 | 100 | 11/2 | 38.10 | 13/4 | 44.450 | 32.000 | |
| LRB243020 | 155 | 11/2 | 38.100 | 13/4 | 47.625 | 32.000 | |
|
41.275 (15/8) |
LRB263212 | 135 | 15/8 | 41.275 | 2 | 50.800 | 25.650 |
| LRB263220 | 170 | 15/8 | 41.275 | 2 | 50.800 | 32.000 | |
|
44.450 (13/4) |
LRB283624 | 300 | 13/4 | 44.450 | 21/4 | 57.450 | 38.350 |
| LRB283628 | 345 | 13/4 | 44.450 | 21/4 | 57.450 | 44.700 | |
|
50.800 (2) |
LRB324024 | 335 | 2 | 50.800 | 21/2 | 63.500 | 38.350 |
| LRB324028 | 390 | 2 | 50.800 | 21/2 | 63.500 | 44.700 | |
|
57.150 (21/4) |
LRB364424 | 375 | 21/4 | 57.150 | 23/4 | 69.850 | 38.350 |
| LRB364428 | 440 | 21/4 | 57.150 | 23/4 | 69.850 | 44.700 | |
|
63.500 (21/2) |
LRB404824 | 410 | 21/2 | 63.500 | 3 | 76.500 | 38.350 |
| LRB404828 | 480 | 21/2 | 63.500 | 3 | 76.500 | 44.700 | |
|
69.850 (23/4) |
LRB445228 | 530 | 23/4 | 69.850 | 31/4 | 82.550 | 44.700 |
| LRB445232 | 600 | 23/4 | 69.850 | 31/4 | 82.550 | 51.050 | |
|
76.200 (3) |
LRB485632 | 640 | 3 | 76.200 | 31/2 | 88.900 | 51.050 |
|
82.550 (31/4) |
LRB526032 | 690 | 31/4 | 82.550 | 33/4 | 95.250 | 51.050 |
|
88.900 (31/2) |
LRB566432 | 750 | 31/2 | 88.900 | 4 | 101.600 | 51.050 |
