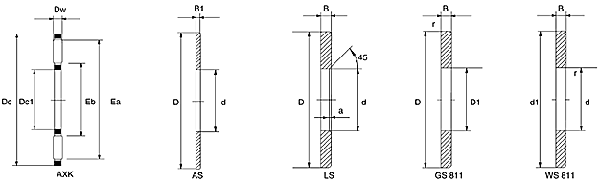

AXK Series
Prodcut Name:AXK Series
Product Description
|
Shaft Diameter |
Axial Needle Roller and Cage Assemblies | Thrust bearing washer | Dimension | Track size |
Basic Load Rating KN |
Limiting Speed r/min |
|||||||||||||||
| Code |
Mass g |
||||||||||||||||||||
| mm | Bearing washer |
Mass g |
Shaft Ring | Seat Ring | Axial Bearing Washer |
Mass g |
Dcl d |
D1 |
Dc D |
d1 | Dw | B1 | B |
a r min |
Eb | Ea | C | CO | |||
| 4 | AXK0414TN | 0.7 | AS0414 | 1 | — | — | — | — | 4 | — | 14 | — | 2 | 1 | — | — | 5 | 13 | 4.4 | 8 | 21000 |
| 5 | AXK0515TN | 0.8 | AS0515 | 1 | — | — | — | — | 5 | — | 15 | — | 2 | 1 | — | — | 6 | 14 | 4.75 | 9.2 | 21000 |
| 6 | AXK0619TN | 1 | AS0619 | 2 | LS0619 | — | — | 4 | 6 | — | 19 | — | 2 | 1 | 2.75 | 0.3 | 7 | 18 | 6.8 | 15.5 | 19000 |
| 8 | AXK0821TN | 2 | AS0821 | 2 | LS0821 | — | — | 4 | 8 | — | 21 | — | 2 | 1 | 2.75 | 0.3 | 9 | 20 | 7.8 | 19.4 | 18000 |
| 10 | AXK1024 | 3 | AS1024 | 3 | LS1024 | — | — | 7 | 10 | — | 24 | — | 2 | 1 | 2.75 | 0.3 | 12 | 23 | 9.2 | 25.5 | 17000 |
| 12 | AXK1226 | 3 | AS1226 | 3 | LS1226 | — | — | 8 | 12 | — | 26 | — | 2 | 1 | 2.75 | 0.3 | 14 | 25 | 9.9 | 29 | 15000 |
| 15 | AXK1528 | 4 | AS1528 | 3 | LS1528 | GS81102 | WS81102 | 9 | 15 | 16 | 28 | 28 | 2 | 1 | 2.75 | 0.3 | 17 | 27 | 11.3 | 36 | 13000 |
| 17 | AXK1730 | 4 | AS1730 | 4 | LS1730 | GS81103 | WS81103 | 9 | 17 | 18 | 30 | 30 | 2 | 1 | 2.75 | 0.3 | 19 | 29 | 11.9 | 39.5 | 12000 |
| 20 | AXK2035 | 5 | AS2035 | 5 | LS2035 | GS81104 | WS81104 | 13 | 20 | 21 | 35 | 35 | 2 | 1 | 2.75 | 0.3 | 22 | 34 | 13.1 | 46.5 | 10000 |
| 25 | AXK2542 | 7 | AS2542 | 7 | LS2542 | GS81105 | WS81105 | 19 | 25 | 26 | 42 | 42 | 2 | 1 | 3 | 0.6 | 29 | 41 | 14.7 | 58 | 8500 |
| 30 | AXK3047 | 8 | AS3047 | 8 | LS3047 | GS81106 | WS81106 | 22 | 30 | 32 | 47 | 47 | 2 | 1 | 3 | 0.6 | 34 | 46 | 16.3 | 70 | 7500 |
| 35 | AXK3552 | 10 | AS3552 | 9 | LS3552 | GS81107 | WS81107 | 29 | 35 | 37 | 52 | 52 | 2 | 1 | 3.5 | 0.6 | 39 | 51 | 17.8 | 81 | 6500 |
| 40 | AXK4060 | 16 | AS4060 | 12 | LS4060 | GS81108 | WS81108 | 40 | 40 | 42 | 60 | 60 | 3 | 1 | 3.5 | 0.6 | 45 | 58 | 28 | 114 | 6000 |
| 45 | AXK4565 | 18 | AS4565 | 13 | LS4565 | GS81109 | WS81109 | 50 | 45 | 47 | 65 | 65 | 3 | 1 | 4 | 0.6 | 50 | 63 | 30 | 128 | 5000 |
| 50 | AXK5070 | 20 | AS5070 | 14 | LS5070 | GS81110 | WS81110 | 55 | 50 | 52 | 70 | 70 | 3 | 1 | 4 | 0.6 | 55 | 68 | 32 | 143 | 4800 |
| 55 | AXK5578 | 28 | AS5578 | 18 | LS5578 | GS81111 | WS81111 | 88 | 55 | 57 | 78 | 78 | 3 | 1 | 5 | 0.6 | 60 | 76 | 38 | 186 | 4300 |
| 60 | AXK6085 | 33 | AS6085 | 22 | LS6085 | GS81112 | WS81112 | 97 | 60 | 62 | 85 | 85 | 3 | 1 | 4.75 | 1 | 65 | 83 | 44.5 | 234 | 4000 |
| 65 | AXK6590 | 35 | AS6590 | 24 | LS6590 | GS81113 | WS81113 | 115 | 65 | 67 | 90 | 90 | 3 | 1 | 5.25 | 1 | 70 | 88 | 46.5 | 255 | 3700 |
| 70 | AXK7095 | 60 | AS7095 | 25 | LS7095 | GS81114 | WS81114 | 123 | 70 | 72 | 95 | 95 | 4 | 1 | 5.25 | 1 | 74 | 93 | 54 | 255 | 3500 |
| 75 | AXK75100 | 61 | AS75100 | 27 | LS75100 | GS81115 | WS81115 | 142 | 75 | 77 | 100 | 100 | 4 | 1 | 5.75 | 1 | 79 | 98 | 55 | 265 | 3300 |
| 80 | AXK80105 | 63 | AS80105 | 28 | LS80105 | GS81116 | WS81116 | 151 | 80 | 82 | 105 | 105 | 4 | 1 | 5.75 | 1 | 84 | 103 | 56 | 280 | 3100 |
| 85 | AXK85110 | 67 | AS85100 | 29 | LS85110 | GS81117 | WS81117 | 159 | 85 | 87 | 110 | 110 | 4 | 1 | 5.75 | 1 | 89 | 108 | 58 | 290 | 3000 |
| 90 | AXK90120 | 86 | AS90120 | 39 | LS90120 | GS81118 | WS81118 | 234 | 90 | 92 | 120 | 120 | 4 | 1 | 6.5 | 1 | 94 | 118 | 73 | 405 | 2700 |
| 100 | AXK100135 | 104 | AS100135 | 50 | LS100135 | GS81120 | WS81120 | 350 | 100 | 102 | 135 | 135 | 4 | 1 | 7 | 1 | 105 | 133 | 91 | 560 | 2500 |
| 110 | AXK110145 | 122 | AS110145 | 55 | LS110145 | GS81122 | WS81122 | 385 | 110 | 112 | 145 | 145 | 4 | 1 | 7 | 1 | 115 | 143 | 97 | 620 | 2300 |
| 120 | AXK120155 | 131 | AS120155 | 59 | LS120155 | GS81124 | WS81124 | 415 | 120 | 122 | 155 | 155 | 4 | 1 | 7 | 1 | 125 | 153 | 102 | 680 | 2100 |
| 130 | AXK130170 | 205 | AS130170 | 65 | LS130170 | GS81126 | WS81126 | 663 | 130 | 132 | 170 | 170 | 5 | 1 | 9 | 1 | 136 | 167 | 133 | 840 | 1900 |
| 140 | AXK140180 | 219 | AS140180 | 79 | LS140180 | GS81128 | WS81128 | 749 | 140 | 142 | 180 | 178 | 5 | 1 | 9.5 | 1 | 146 | 177 | 138 | 900 | 1800 |
| 150 | AXK150190 | 232 | AS150190 | 84 | LS150190 | GS81130 | WS81130 | 796 | 150 | 152 | 190 | 188 | 5 | 1 | 9.5 | 1 | 156 | 187 | 143 | 960 | 1700 |
| 160 | AXK160200 | 246 | AS160200 | 89 | LS160200 | GS81132 | WS81132 | 842 | 160 | 162 | 200 | 198 | 5 | 1 | 9.5 | 1 | 166 | 197 | 145 | 1020 | 1600 |
