Home > Products > Needle Roller Bearings > Thrust needle roller with cage assemblies > AX Series

AX Series

Prodcut Name:AX Series

Product Description

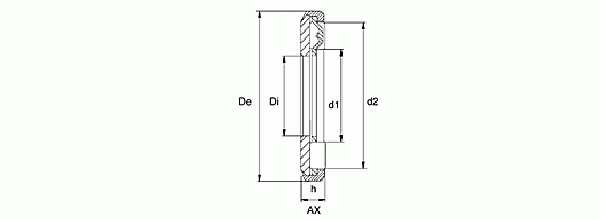

Shaft Diameter	Bearing Designation		Mass Approx	BoundaryDimensions					BasicLoadRating		Limiting Speed
	AX Baureihe dunn	AX Baureihe dick		Di	De	h	d1	d2	Dynamic	Static	Grenzdrehzahl min^-1
mm			g	mm					N

5	AX 5 13	AX 3.5 5 13	1.3 2.3	5 5	13 13	2.3 3.5	6.3 6.3	10.9 10.9	3000 3000	5700 5700	25000 25000
6	AX 6 14	AX 3.5 6 14	1.4 2.4	6 6	14 14	2.3 3.5	7.3 7.3	11.9 11.9	3150 3150	6350 6350	22000 22000
7	AX 7 15	AX 3.5 7 15	1.7 2.9	7 7	15 15	2.3 3.5	8.3 8.3	12.9 12.9	3550 3550	7600 7600	22000 22000
8	AX 8 16	AX 3.5 8 16	1.7 3	8 8	16 16	2.3 3.5	9.3 9.3	13.9 13.9	3700 3700	8300 8300	22000 22000
9	AX 9 17	AX 3.5 9 17	2.1 3.5	9 9	17 17	2.1 3.5	10.3 10.3	14.9 14.9	4050 4050	9500 9500	19000 19000
10	AX 10 22	AX 4 10 22	4 6.5	10 10	22 22	2.8 4	12 12	18.6 18.6	5000 5000	10900 10900	15500 15500
12	AX 12 26	AX 4 12 26	6 10	12 12	26 26	2.8 4	15 15	22.6 22.6	6900 6900	17700 17700	13000 13000
13	AX 13 26	AX 4 13 26	6 9.8	13 13	26 26	2.8 4	15 15	22.6 22.6	6900 6900	17700 17700	11300 11300
15	AX 15 28	AX 4 15 28	6.9 9	15 15	28 28	4	17	24.6	7400	20000	11500
17	AX 17 30	AX 4 17 30	7.6 10	17 17	30 30	2.8 4	19 19	26.6 26.6	7800 7800	22000 22000	10500 10500
19	AX 19 32	AX 4 19 32	8.6 13	19 19	32 32	2.8 4	21 21	28.6 28.6	8000 8000	23300 23300	10000 10000
20	AX 20 35	AX 5 20 35	10.2 18	20 20	35 35	2.8 5	22 22	31.6 31.6	11800 11800	39000 39000	9000 9000
25	AX 25 42	AX 5 25 42	11.5 25	25 25	42 42	2.8 5	27.7 27.7	37.4 37.4	13300 13300	49000 49000	7500 7500
27	AX 27 44		12.1	27	44	2.8	30	39.5	13700	52000	7200
30	AX 30 47	AX 5 30 47	13.7 29	30 30	47 47	2.8 5	32.7 32.7	42.4 42.4	14500 14500	57000 57000	6500 6500
35?	AX 35 52	AX 5 35 52	18.5 35	35 35	52 52	2.8 5	37.2 37.2	49 49	18900 18900	84000 84000	5500 5500
35?	AX 35 53	AX 5 35 53	19.3 36	35 35	53 53	2.8 5	37.2 37.2	49 49	18900 18900	84000 84000	5500 5500
40	AX 40 60	AX 5 40 60	23.9 45	40 40	60 60	2.8 5	43 43	54.9 54.9	20400 20400	96000 96000	5000 5000
45	AX 45 65	AX 5 45 65	24.7 50	45 45	65 65	2.8 5	48 48	59.9 59.9	21800 21800	109000 109000	4500 4500
