Home > Products > Thrust Roller Bearings > Cylindrical roller thrust bearing

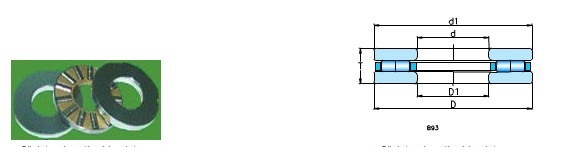

Cylindrical roller thrust bearing

Boundary dimensions(mm)								Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	d1s max	D1s min	T	Dw	B	rs min	Cr	Cor	Grease	Oil	(Approx.)	NO
30	60	60	32	18	5.5	6.25	1	54.0	166	1300	5000	0.250	89306
35	68	68	37	20	6	7	1	66.0	214	1200	4600	0.360	89307
40	78	78	42	22	7	7.5	1	85.0	277	1000	4000	0.520	89308
45	85	85	47	24	7.5	8.25	1	102	345	900	3600	0.670	89309
50	95	95	52	27	8	9.5	1.1	125	445	800	3200	0.940	89310
55	105	105	57	30	9	10.5	1.1	158	570	730	2900	1.27	89311
60	110	110	62	30	9	10.5	1.1	162	600	680	2700	1.35	89312
65	115	115	67	30	9	10.5	1.1	166	635	650	2600	1.43	89313
70	125	125	72	34	10	12	1.1	205	790	600	2400	1.93	89314
75	135	135	77	36	11	12.5	1.5	239	920	550	2200	2.41	89315
80	140	140	82	36	11	12.5	1.5	246	970	530	2100	2.53	89316
85	150	150	88	39	12	13.5	1.5	281	1100	500	2000	3.14	89317
90	155	155	93	39	12	13.5	1.5	289	1160	480	1900	3.28	89318
100	170	170	103	42	13	14.5	1.5	335	1370	430	1700	4.19	89320
110	190	190	113	48	15	16.5	2	430	177.	400	1600	6.03	89322
15	28	28	16	9	3.5	2.75	0.3	12.9	28.6	2800	11000	0.026	81102
17	30	30	18	9	3.5	2.75	0.3	13.4	31.0	2500	10000	0.030	81103
20	35	35	21	10	4.5	2.75	0.3	20.2	46.5	2100	8500	0.0040	81104
25	42	42	26	11	5	3	0.6	27.3	68.0	1800	7000	0.0060	81105
30	47	47	32	11	5	3	0.6	27.8	72.5	1500	6000	0.0070	81106
35	52	52	37	12	5	3.5	0.6	31.0	87.0	1400	5500	0.0090	81107
40	60	60	42	13	6	3.5	0.6	43.0	121	1200	4800	0.135	81108
45	65	65	47	14	6	4	0.5	45.5	135	1100	4400	0.150	81109
50	70	70	52	14	6	4	0.5	48.0	150	1000	4000	0.165	81110
55	78	78	57	16	6	5	0.6	62.5	215	900	3600	0.250	81111
60	85	85	62	17	7.5	4.75	1	69.0	215	830	3300	0.285	81112
65	90	90	67	18	7.5	5.25	1	73.0	236	780	3100	0.340	81113
70	95	95	72	18	7.5	5.25	1	76.5	257	730	2900	0.365	81114
75	100	100	77	19	7.5	5.75	1	78.0	268	680	2700	0.425	81115
80	105	105	82	19	7.5	5.75	1	79.5	279	650	2600	0.445	81116
85	110	110	87	19	7.5	5.75	1	83.0	300	630	2500	0.475	81117
90	120	120	92	22	9	6.5	1	112	395	580	2300	0.670	81118
100	135	135	102	25	11	7	1	158	555	500	2000	1.00	81120
110	145	145	112	25	11	7	1	165	605	480	1900	1.10	81122
120	155	155	122	25	11	7	1	172	655	450	1800	1.17	81124
130	170	170	132	30	12	9	1	197	755	400	1600	1.74	81126
140	180	178	142	31	12	9.5	1	206	815	380	1500	1.95	81128
150	190	188	152	31	12	9.5	1	214	870	350	1400	2.07	81130
160	200	198	162	31	12	9.5	1	221	930	330	1300	2.19	81132
30	52	52	32	16	7.5	4.25	0.6	53.5	129	1500	6000	0.140	81206
35	62	62	37	18	7.5	5.25	1	54.5	139	1200	4900	0.235	81207
40	68	68	42	19	9	5	1	74.5	190	1100	4400	0.265	81208
45	73	73	47	20	9	5.5	1	82.0	222	1000	4100	0.310	81209
50	78	78	52	22	9	6.5	1	85.0	238	950	3800	0.385	81210
55	90	90	57	25	11	7	1	121	340	830	3300	0.610	81211
60	95	95	62	26	11	7.5	1	125	365	780	3100	0.660	81212
65	100	100	67	27	11	8	1	130	385	730	2900	0.775	81213
70	105	105	72	27	11	8	1	134	410	680	2700	0.815	81214
75	110	110	77	27	11	8	1	138	435	650	2600	0.860	81215
80	115	115	82	28	11	8.5	1	142	460	630	2500	0.950	81216
85	125	125	88	31	12	9.5	1	169	550	580	2300	1.28	81217
90	135	135	93	35	14	10.5	1.1	213	680	530	2100	1.82	81218
100	150	150	103	38	15	11.5	1.1	243	795	480	1900	2.24	81220
110	160	160	113	38	15	11.5	1.1	259	885	450	1800	2.45	81222
120	170	170	123	39	15	12	1.1	264	930	430	1700	2.69	81224
130	190	187	133	45	19	13	1.5	360	1210	380	1500	4.20	81226
140	200	197	143	46	19	13.5	1.5	370	1280	350	1400	4.57	81228
