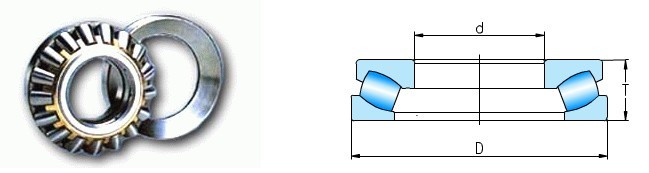

Spherical roller thrust bearing
| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | ||||
| d | D | T | rs min | Ca | Coa | Oil | (Approx.) | |
| 150 | 215 | 39 | 1.5 | 340 | 1,340 | 1,800 | 4.56 | 29230 |
| 160 | 225 | 39 | 1.5 | 360 | 1,460 | 1,700 | 4.88 | 29232 |
| 170 | 240 | 42 | 1.5 | 425 | 1,770 | 1,600 | 6.02 | 29234 |
| 180 | 250 | 42 | 1.5 | 450 | 1,920 | 1,600 | 6.27 | 29236 |
| 190 | 270 | 48 | 2 | 530 | 2,230 | 1,400 | 8.8 | 29238 |
| 200 | 280 | 48 | 2 | 535 | 2,300 | 1,400 | 9.14 | 29240 |
| 85 | 150 | 39 | 1.5 | 265 | 820 | 2,300 | 2.94 | 29317 |
| 90 | 155 | 39 | 1.5 | 285 | 915 | 2,300 | 3.08 | 29318 |
| 100 | 170 | 42 | 1.5 | 345 | 1,160 | 2,100 | 3.94 | 29320 |
| 110 | 190 | 48 | 2 | 445 | 1,500 | 1,800 | 5.78 | 29322 |
| 120 | 210 | 54 | 2.1 | 535 | 1,770 | 1,600 | 7.92 | 29324 |
| 130 | 225 | 58 | 2.1 | 615 | 2,100 | 1,500 | 9.76 | 29326 |
| 140 | 240 | 60 | 2.1 | 685 | 2,360 | 1,400 | 11.4 | 29328 |
| 150 | 250 | 60 | 2.1 | 675 | 2,390 | 1,400 | 12 | 29330 |
| 160 | 270 | 67 | 3 | 820 | 2,860 | 1,300 | 15.9 | 29332 |
| 170 | 280 | 67 | 3 | 855 | 3,050 | 1,200 | 16.6 | 29334 |
| 180 | 300 | 73 | 3 | 995 | 3,600 | 1,100 | 21.2 | 29336 |
| 190 | 320 | 78 | 4 | 1,150 | 4,250 | 1,100 | 26 | 29338 |
| 200 | 340 | 85 | 4 | 1,280 | 4,600 | 980 | 31.9 | 29340 |
| 60 | 130 | 42 | 1.5 | 283 | 805 | 2,600 | 2.78 | 29412 |
| 65 | 140 | 45 | 2 | 330 | 945 | 2,400 | 3.44 | 29413 |
| 70 | 150 | 48 | 2 | 365 | 1,040 | 2,200 | 4.19 | 29414 |
| 75 | 160 | 51 | 2 | 415 | 1,190 | 2,100 | 5.07 | 29415 |
| 80 | 170 | 54 | 2.1 | 460 | 1,380 | 1,900 | 6.09 | 29416 |
| 85 | 180 | 58 | 2.1 | 490 | 1,480 | 1,800 | 7.2 | 29417 |
| 90 | 190 | 60 | 2.1 | 545 | 1,680 | 1,700 | 8.38 | 29418 |
| 100 | 210 | 67 | 3 | 685 | 2130 | 1,500 | 11.5 | 29420 |
| 110 | 230 | 73 | 3 | 845 | 2,620 | 1,400 | 15 | 29422 |
| 120 | 250 | 78 | 4 | 975 | 3,050 | 1,300 | 18.6 | 29424 |
| 130 | 270 | 85 | 4 | 1,080 | 3,550 | 1,200 | 23.7 | 29426 |
| 140 | 280 | 85 | 4 | 1,110 | 3,750 | 1,200 | 25.2 | 29428 |
| 150 | 300 | 90 | 4 | 1,280 | 4,350 | 1,100 | 30.5 | 29430 |
| 160 | 320 | 95 | 5 | 1,500 | 5,150 | 1,000 | 37 | 29432 |
| 170 | 340 | 103 | 5 | 1,660 | 5,750 | 940 | 45 | 29434 |
| 180 | 360 | 109 | 5 | 1,840 | 6,200 | 890 | 52.9 | 29436 |
| 190 | 380 | 115 | 5 | 2,010 | 6,800 | 840 | 62 | 29438 |
| 200 | 400 | 122 | 5 | 2,230 | 7,650 | 790 | 73.3 | 29440 |
