Home > Products > Track rollers with groove bearings > Wire guides and straightening rollers type A or AT Series

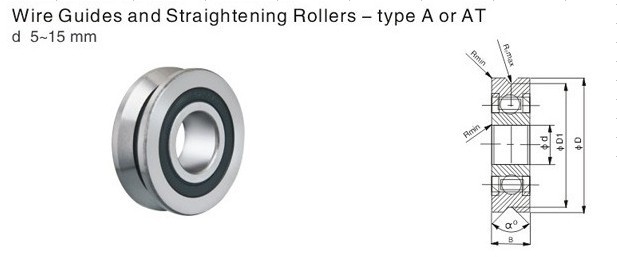

Wire guides and straightening rollers type A or AT Series

Prodcut Name:A or AT Series

Product Description

Double row ball design
Code	Weight(KG)	Main dimensions(mm)							Load Ratings
FYB	≈(g)	d	D	D1	B	Ra	a	R	Cw(KN)	Cow(KN)
A507.2Z	11	5	21	19	6	0.5	90	0.3	2.2	0.89
A507.2RS	11	5	21	19	6	0.5	90	0.3	2.2	0.89
A603.2Z	11	6	21	19	6	0.5	90	0.3	2.2	0.89
A603.2RS	11	6	21	19	6	0.5	90	0.3	2.2	0.89
A806.2Z	19	8	26	23	7	0.5	90	0.3	3.3	1.37
A806.2RS	19	8	26	23	7	0.5	90	0.3	3.3	1.37
A1001.2Z	31	10	30	27	8	0.5	90	0.3	4.55	1.97
A1001.2RS	31	10	30	27	8	0.5	90	0.3	4.55	1.97
A1002.2Z	46	10	35	31	9	0.5	90	0.6	6	2.68
A1002.2RS	46	10	35	31	9	0.5	90	0.6	6	2.68
A1500.2Z	104	15	47	41	11	0.5	90	0.6	7.6	3.7
A1500.2Z	104	15	47	41	11	0.5	90	0.6	7.6	3.7
AT8E00*	34	8	25	20.4	14	0.7	70	2	5.09	2.6
